Additel 760A/760S

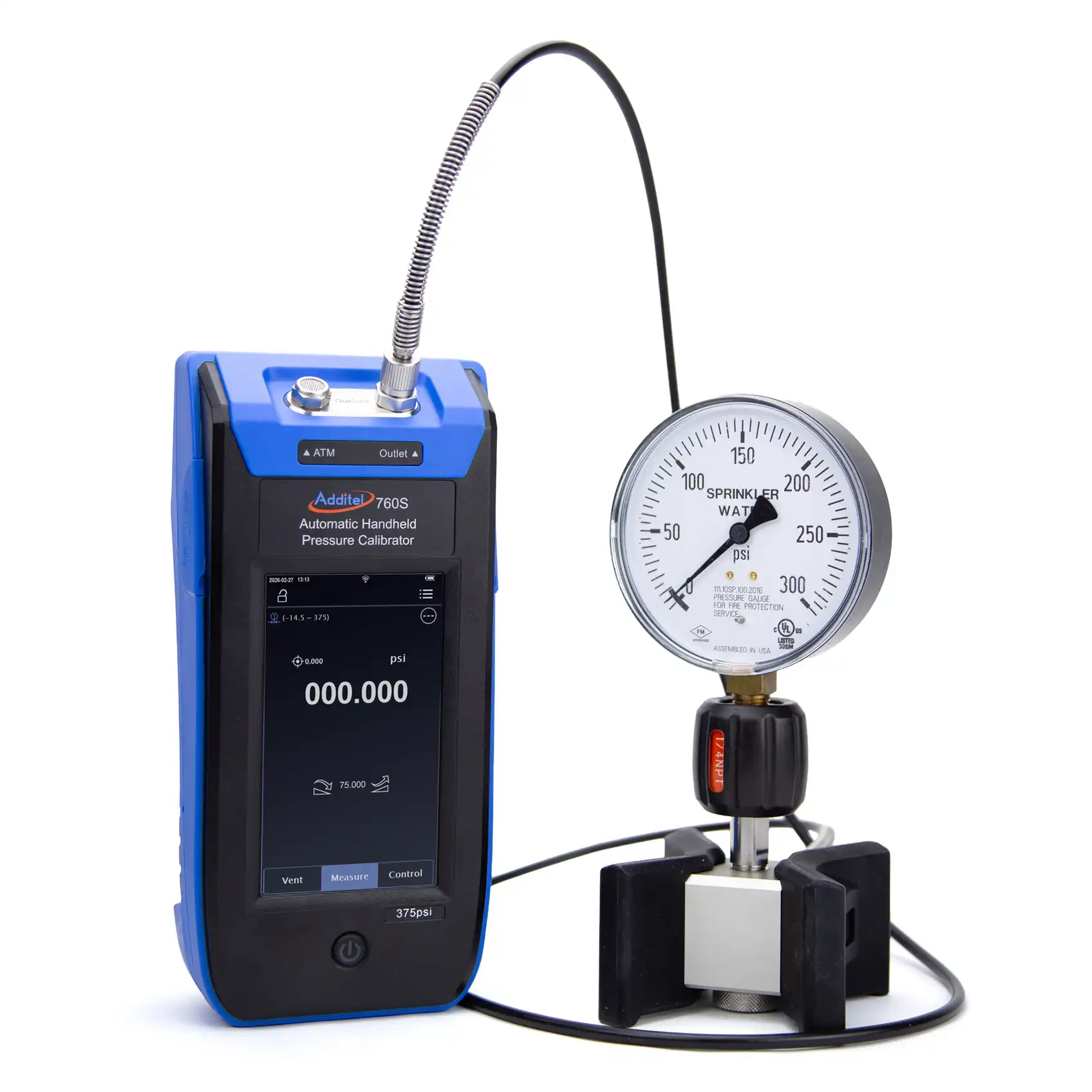

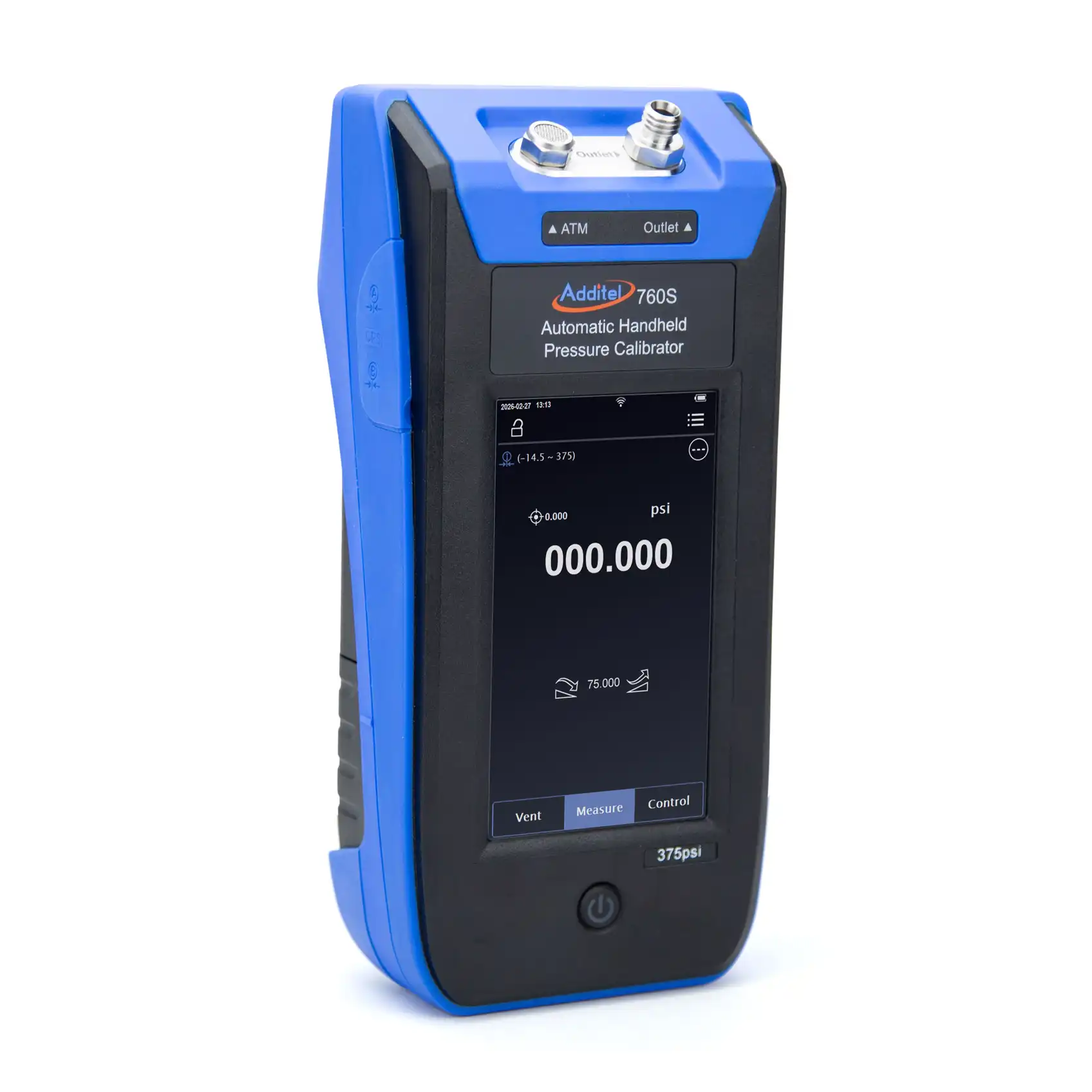

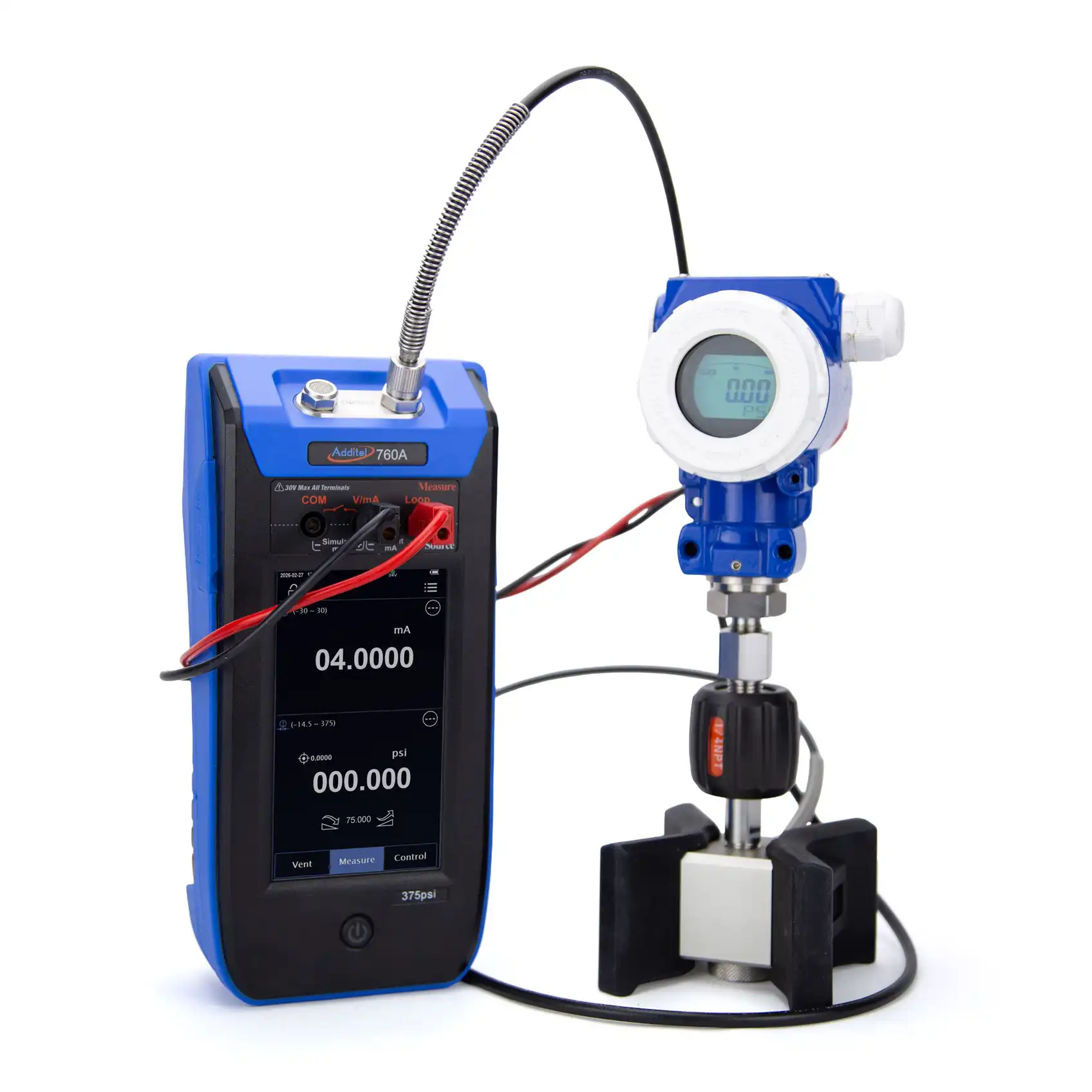

The Additel 760A is a powerful, automatic, portable pressure calibrator designed for precision and portability in the field. Weighing less than 1.8 kg, this integrated device replaces bulky hand pumps with a built-in electric pump, internal controller, and an accurate pressure sensor. Optimized for instrumentation technicians, the ADT760A offers a seamless user interface via a new capacitive touchscreen, allowing users to easily generate and control pressure by entering their desired setpoint. Featuring four distinct channels, including internal pressure, external pressure (2 channels), and electrical measurement, it's a complete tool for pressure calibration and maintenance of critical process infrastructure.

More info

Categories: ,

Automatic handshake calibrator

  • Automated pressure generation and control up to 375 psi (25 bar)
  • Fully automatic pressure calibrator with built-in pump
  • Pressure range of ±30 inH2O to 375 psi
  • Accuracy down to 0.01%FS
  • Interchangeable pressure module for alternative ranges
  • HART field communicator (optional)
  • Non-PC version available (ADT760S)
  • Less than 1.8 kg for handheld use
  • Bluetooth, Wi-Fi and USB communication
  • Data entry and task functionality
  • Contamination prevention system (optional)
  • Support for external pressure modules (dual-channel)
